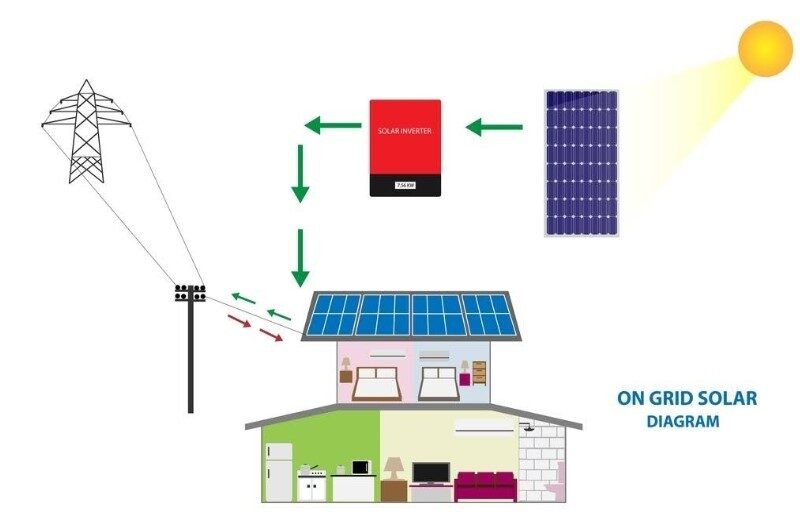

On-Grid Solar Diagrams
- Solar Panels: Capture sunlight and convert it into DC electricity.
- DC Disconnect Switch: Allows you to safely disconnect the solar panels from the system for maintenance.
- Inverter: Converts DC electricity from the solar panels into AC electricity compatible with the grid.
- AC Disconnect Switch: Provides a safe way to disconnect the inverter from the grid.
- Utility Meter: Measures the amount of electricity you consume from and send back to the grid.
- Electric Grid: Supplies power to your home or business when solar production is insufficient.
- Electricity Usage: Powers your appliances and devices, using solar energy when available and grid power when needed.
Description
Customized Solutions for Solar Systems
At our company, we specialize in creating on-grid solar diagrams tailored to meet your specific solar system requirements. By understanding your energy needs, we ensure optimal design and functionality.
Importance of Accurate Diagrams
A well-structured solar diagram is crucial for the successful installation of your solar setup. It provides a clear guide for technicians and helps in maximizing the system’s efficiency. Our diagrams follow industry standards while accommodating your unique specifications.
Get Started Today
Contact us to discuss your project, and we will provide you with a detailed on-grid solar diagram that aligns with your energy goals. We are here to support you in making the most out of solar energy.
